Description

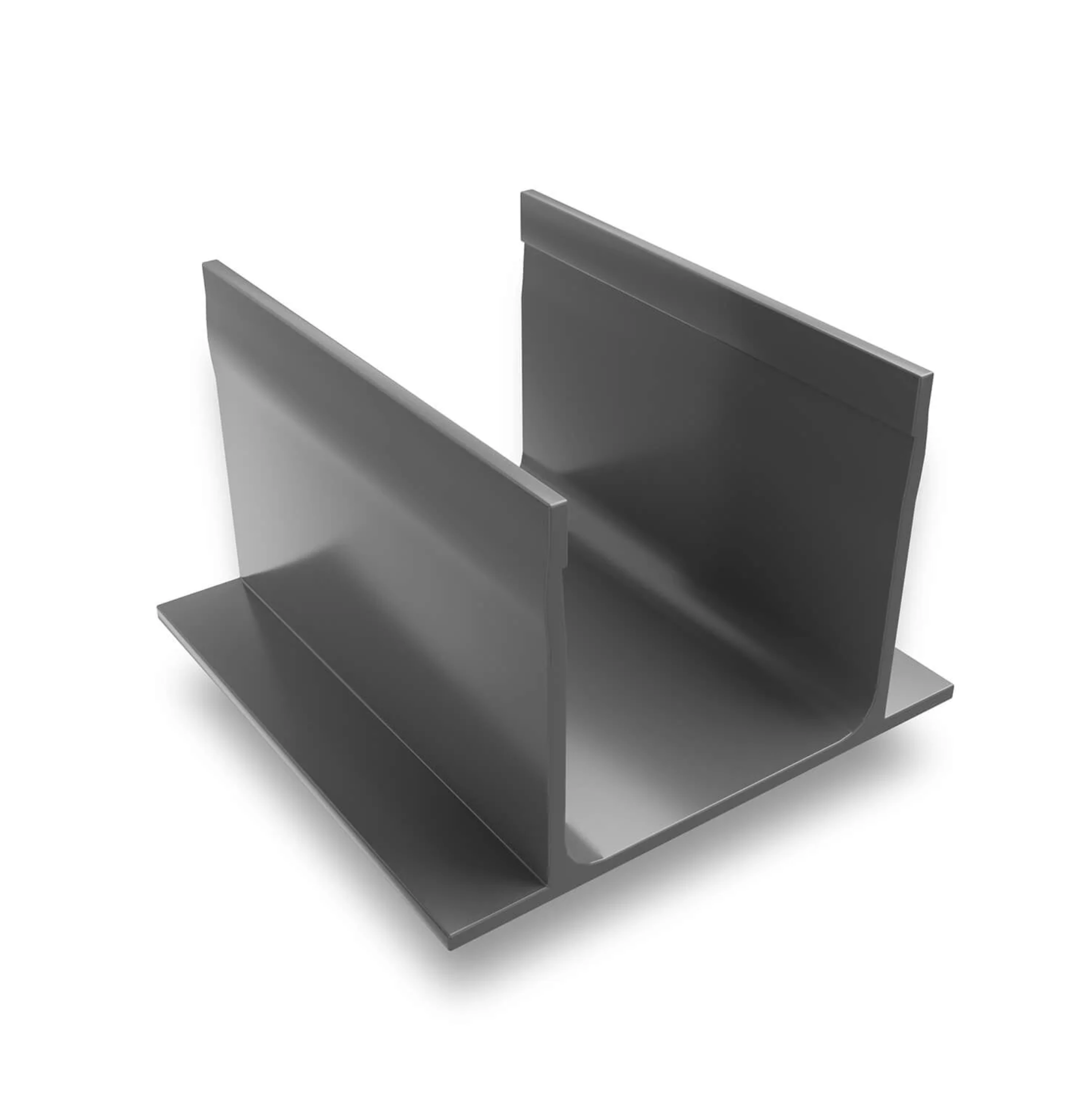

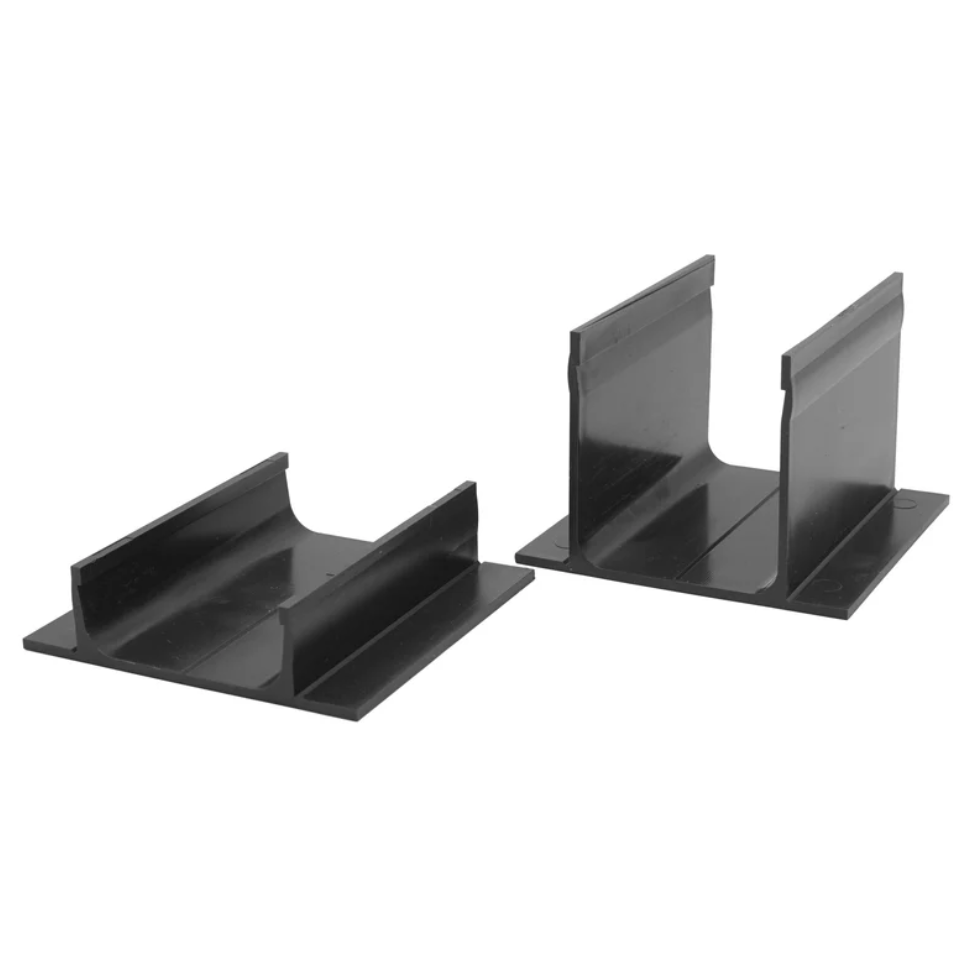

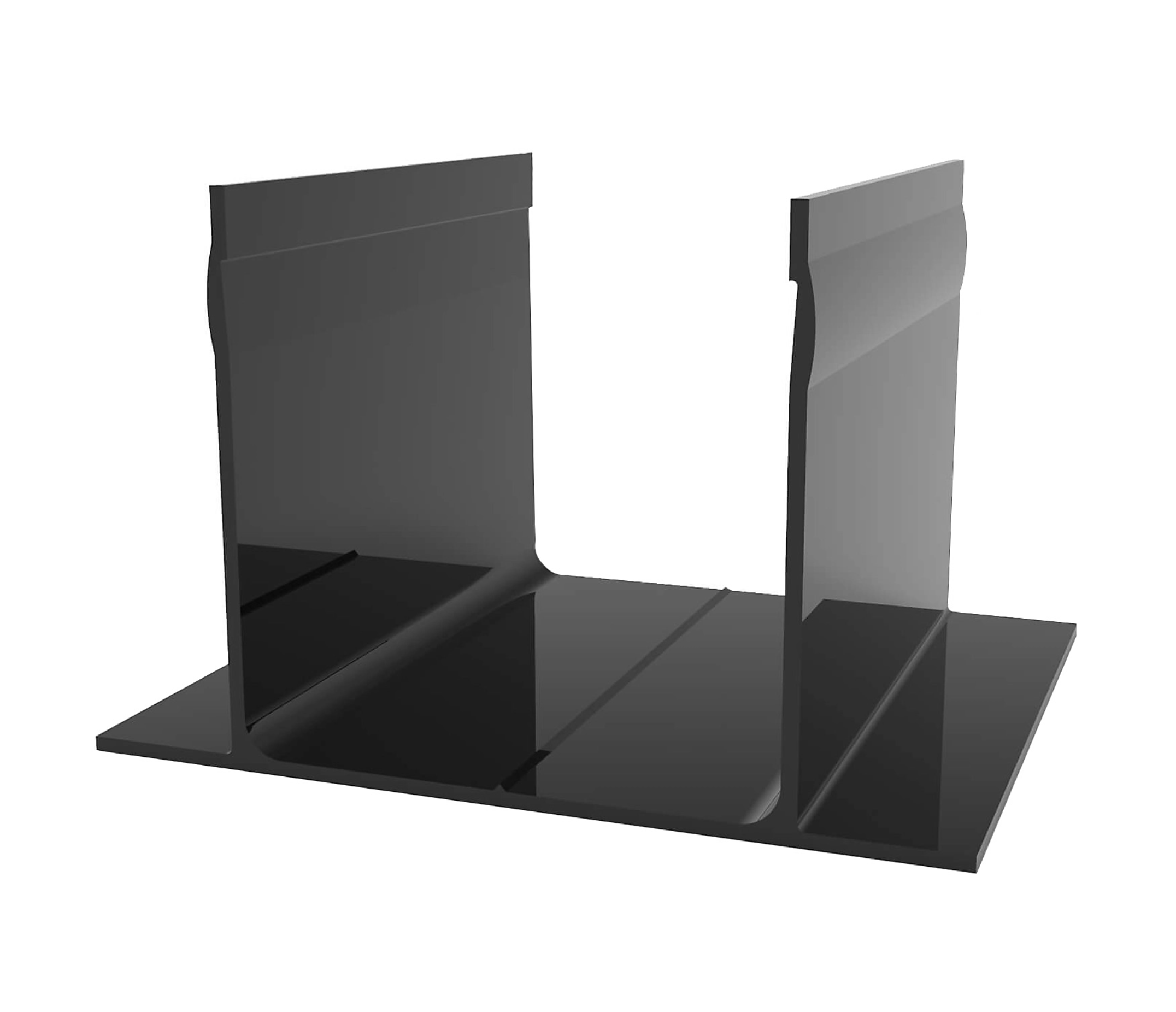

The Alusthetic Threshold Drain Bottom Connector is designed to securely join two 1m Alusthetic drain channels, ensuring a safe, watertight connection and a smooth, continuous finish. With a discreet 4mm lip, it sits flush with the floor to maximise drainage performance while keeping the system subtle and unobtrusive.
Made from durable PVC, this connector is engineered to pair perfectly with the Alusthetic Threshold Drain and Grate system (65mm width x 100mm depth x 1m length). It’s ideal for use around the home and in areas with low or no vehicle traffic such as patios, pathways, and thresholds.
Fully UKCA and CE marked, the system is certified to Load Class A15 (BS EN 1433:2002), withstanding up to 15kN on soft ground and 25kN when installed in concrete. For a reliable watertight seal, simply bond PVC parts together using a PVC solvent weld.
Features & Benefits:
• Safely connects two 1m Alusthetic channel drains
• Discreet 4mm lip for maximum drainage and a flush finish
• Strong PVC construction for long-lasting reliability
• Load Class A15 certified (BS EN 1433:2002)
• Ideal for patios, pathways, and thresholds
• Quick and secure installation with PVC solvent weld
Product Specifications:
• Material: PVC
• Channel compatibility: 65mm (W) x 100mm (D) x 1m (L)
• Load rating: A15 – 15kN (soft ground), 25kN (concrete)
• Certification: UKCA & CE marked
