Description
The EcoGrid Bodenmat is a robust, heavy-duty temporary flooring system designed to protect ground surfaces while providing a stable, safe access route for vehicles, machinery and pedestrians. Manufactured from 100% recycled material, Bodenmat offers exceptional load performance and durability, making it ideal for construction sites, events, marquees, utilities work and temporary access roads.

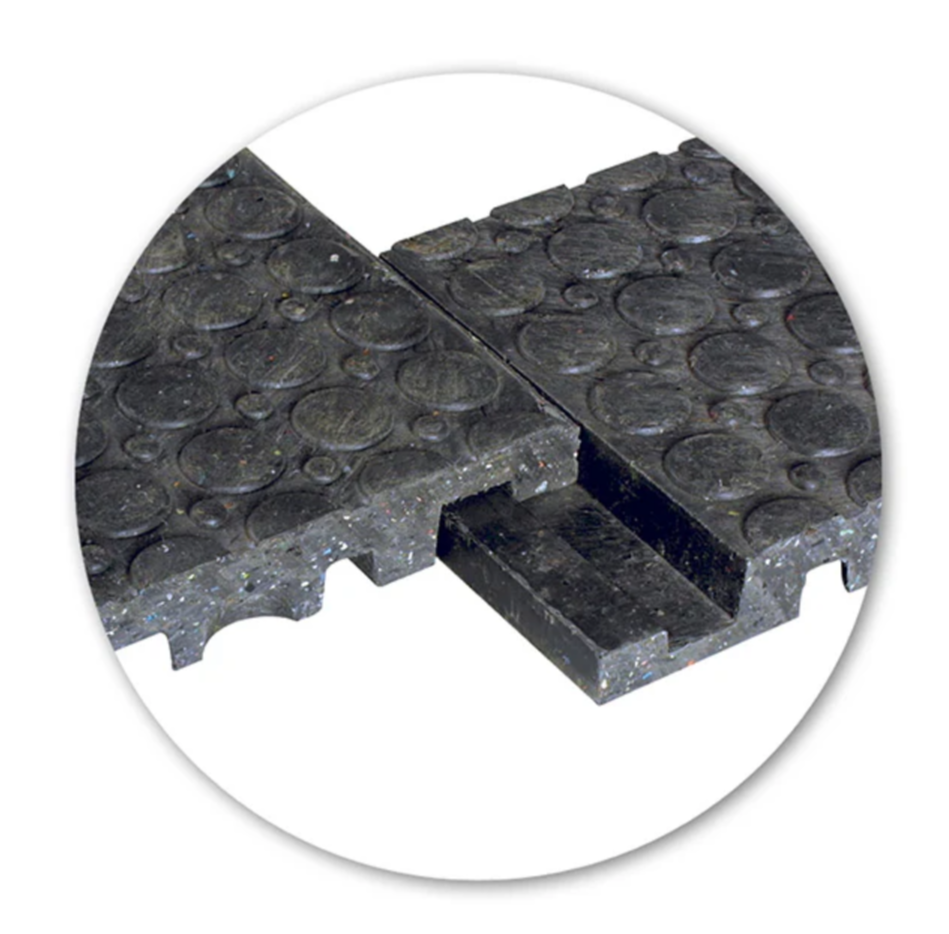

Designed to be laid directly onto solid ground without excavation, Bodenmat panels interlock using an integrated tongue and groove slot-and-key system, allowing fast installation and secure positioning. Panels can be easily cut on site to suit obstacles or irregular layouts, then lifted and reused when no longer required — making Bodenmat a practical, cost-effective and sustainable solution.
With a high load capacity of up to 200 tonnes per m², the system distributes weight evenly to reduce ground damage, while the textured, non-slip surface improves safety in wet and muddy conditions. Integrated drainage channels allow water to flow beneath the mats, helping maintain surface stability and reducing pooling during poor weather.
Optional ramped edges are available to improve accessibility and create a smooth transition between ground levels, supporting safe pedestrian access and wheelchair compliance.
Product Specifications
• Panel Size: 1200 × 800mm
• Thickness: 22mm
• Weight: Approx. 20kg per mat
• Load Capacity: Up to 200 t/m²
• Material: 100% recycled plastic
• Surface: Non-slip, textured finish
• Installation: Loose-laid with slot and key interconnection
• Drainage: Integrated water run-off beneath panels
Typical Applications
• Construction sites and site access routes
• Events, festivals and temporary walkways
• Marquee flooring and insulation layers
• Utility works and infrastructure projects
• Temporary roads, storage areas and work zones

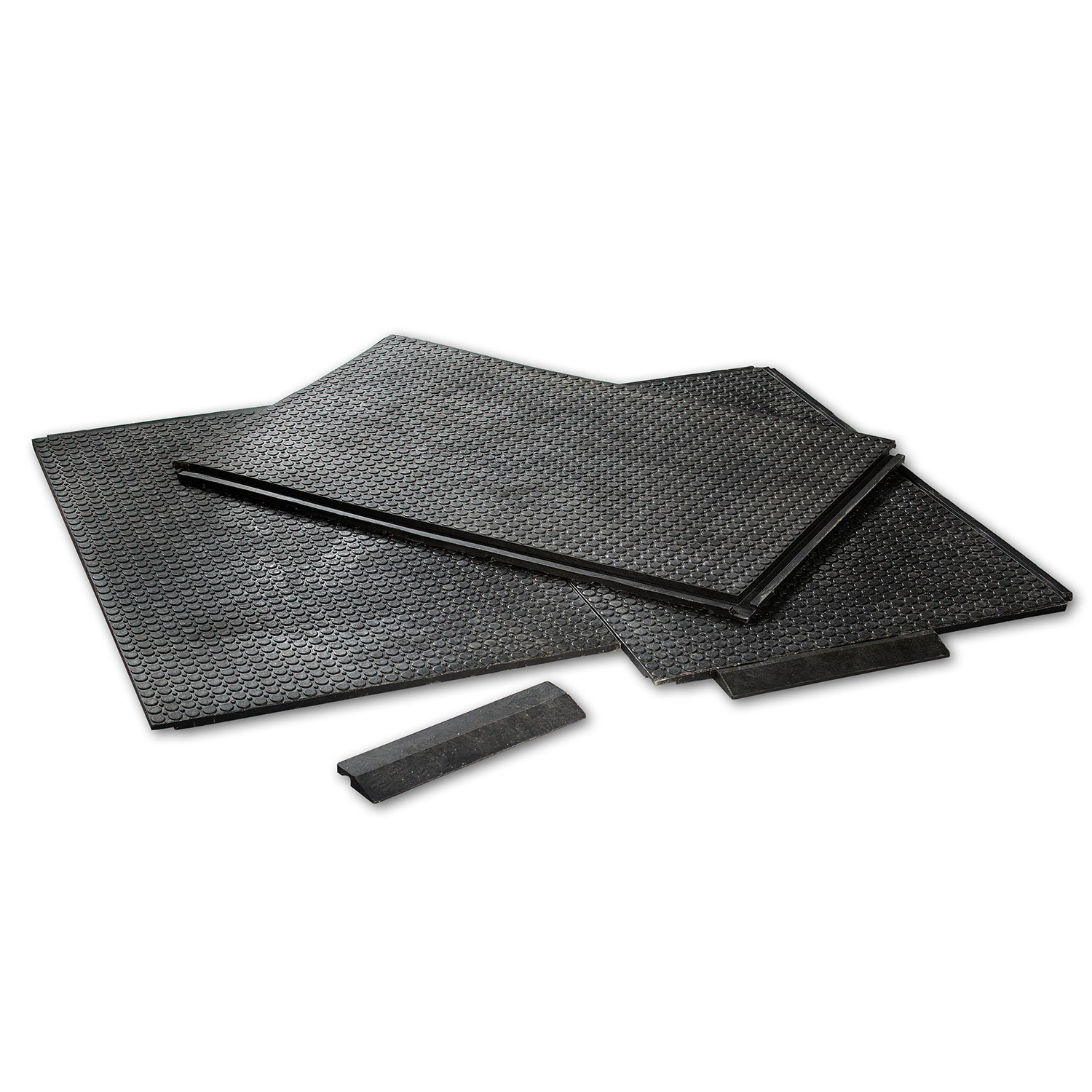

EcoGrid Bodenmat Ground Stabilisation Grid 1200 x 800mm
