Description

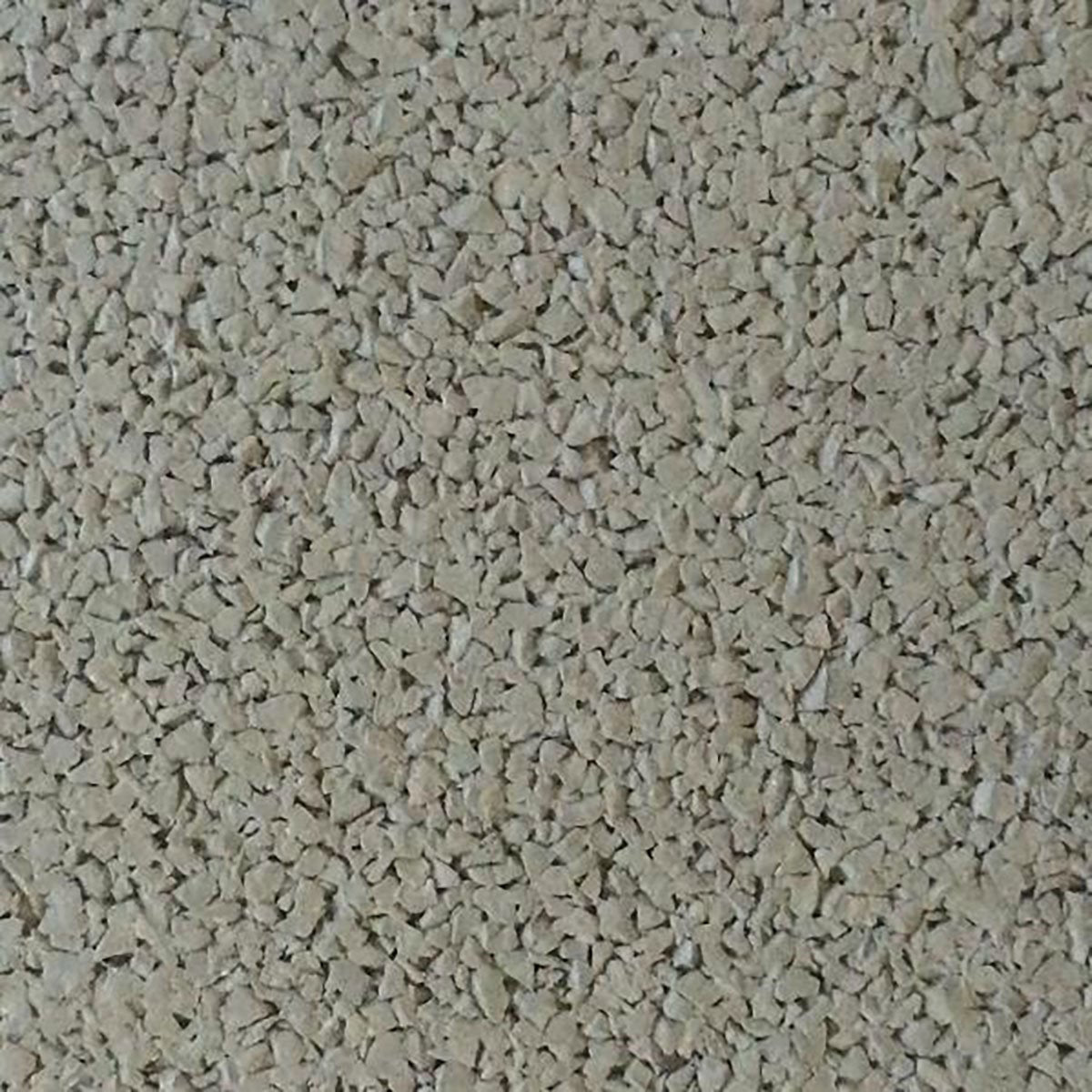

Castleflex EPDM Rubber Tiles provide a durable, colour-fast, and slip-resistant surface ideal for flat roofs, balconies, terraces and play areas. Manufactured with an EPDM top layer, they offer improved UV stability and brighter colour options compared to standard SBR rubber tiles, while retaining excellent drainage and comfort underfoot.
Key Benefits:
EPDM top layer for enhanced colour stability and UV resistance
Suitable for flat roofs, balconies, terraces and playground areas
Porous composition provides excellent drainage (565 mm/hr)
Impact-absorbing and compliant with EN 1177:2008 for playground safety
High slip resistance: 102 Dry / 62 Wet
Available in a wide range of RAL-inspired colours

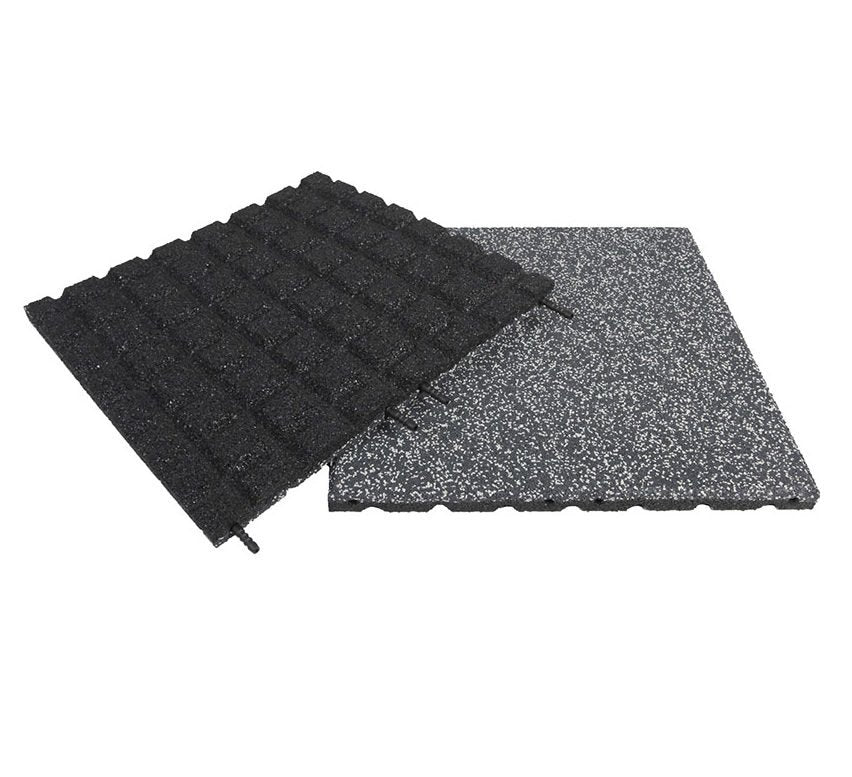

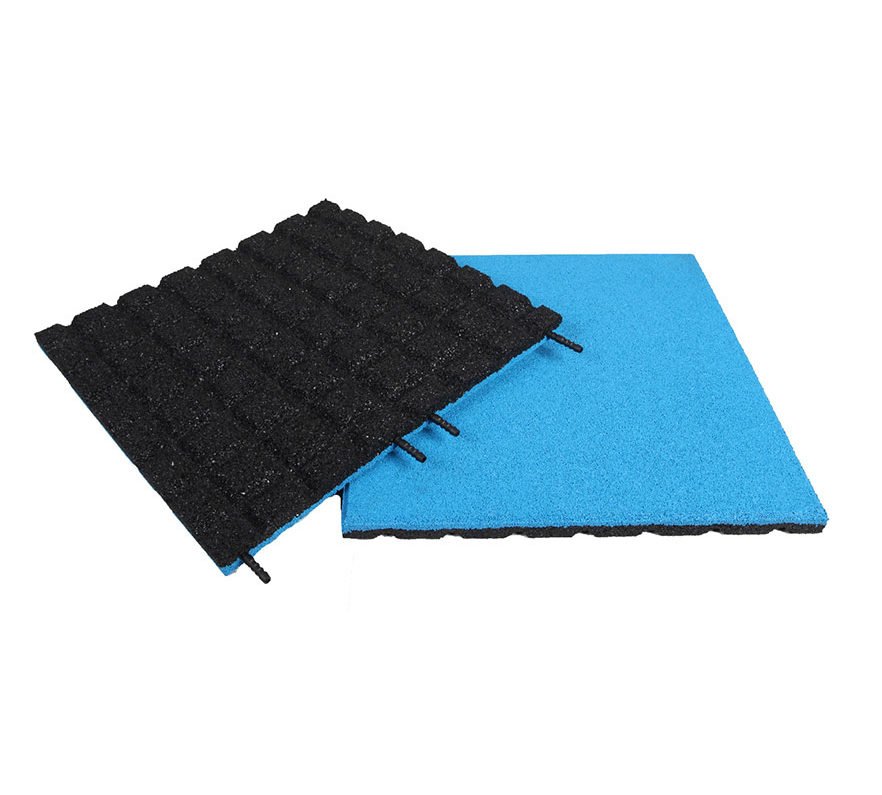

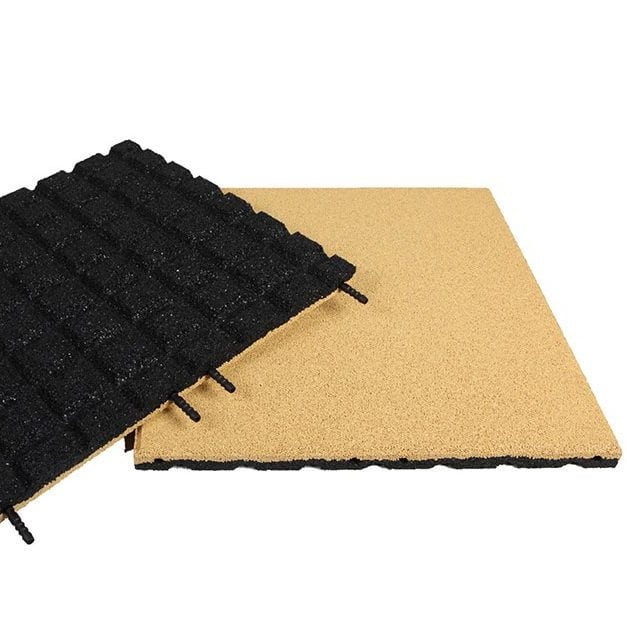

Optional dowel joint system for secure interlocking installation
Product Specifications:
Size: 500 × 500 × 30 mm
Material: EPDM rubber surface with recycled rubber base
Slip Resistance: Dry 102 / Wet 62 (EN 1339:2003)
Water Permeability: 565 mm/hr (EN 12616)
Fire Rating: CFL (EN 13501)
Smoke Classification: S1
Insulation Value: Rd 0.15 (EN 13165), U-value 3.13 (EN 6946)
Installation: Loose-lay with optional dowel joint pins on 30 mm tiles
Important Information
EPDM colour tones may vary slightly between batches—order from the same batch where possible.
Dowel joints improve stability but do not replace perimeter restraint where no upstand exists.
Drainage channels beneath the tiles must remain unobstructed for optimal performance.
Suitable for both residential and commercial applications.
