Description

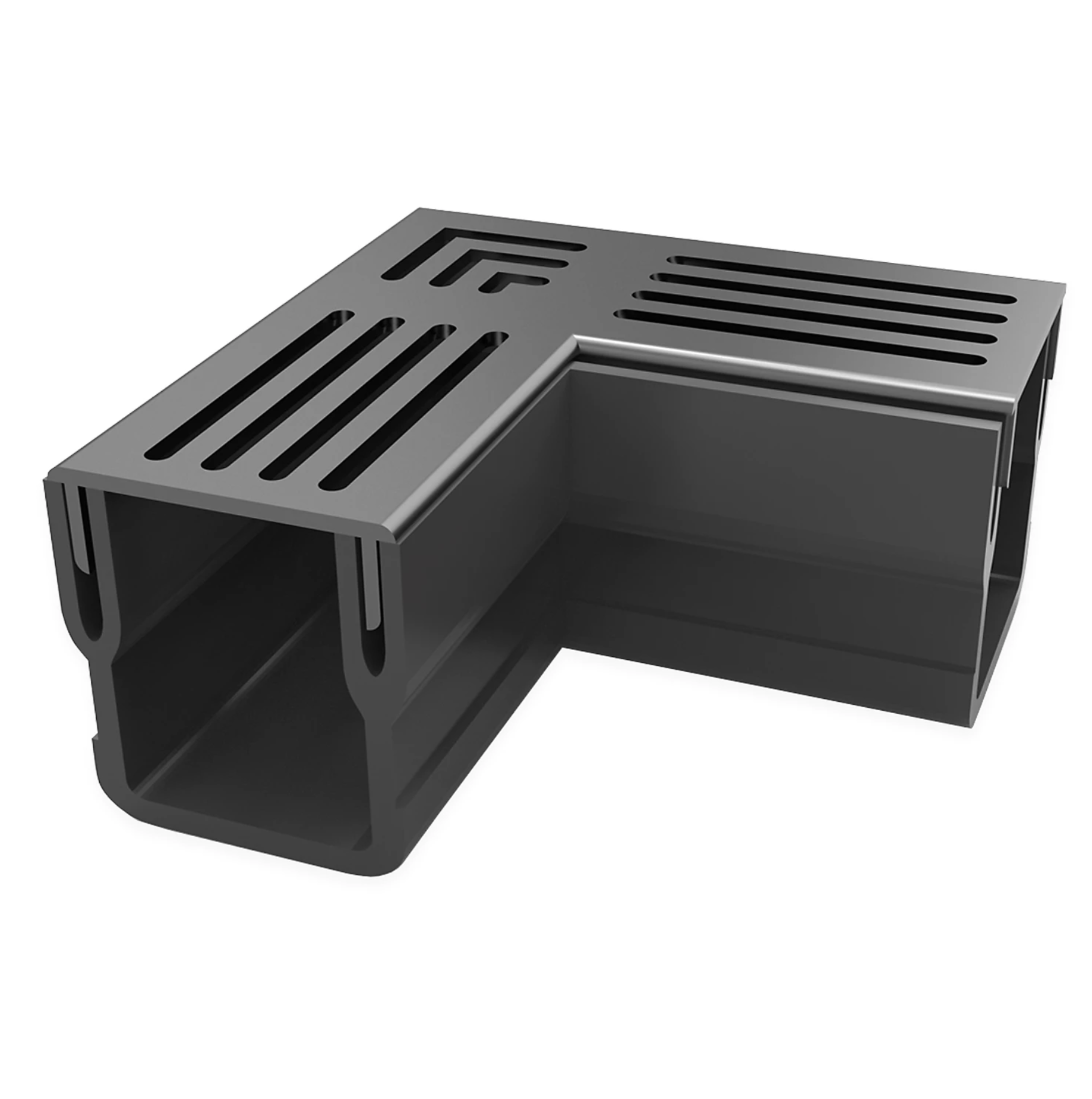

The Alusthetic Low Profile Threshold Drain Corner Unit is designed to integrate seamlessly with the Low Profile Alusthetic Threshold Drain and Grate system, allowing for neat and secure 90° turns around corners. Manufactured from durable extruded PVC, this unit ensures a watertight connection while keeping the slim, discreet look of the low profile channel.

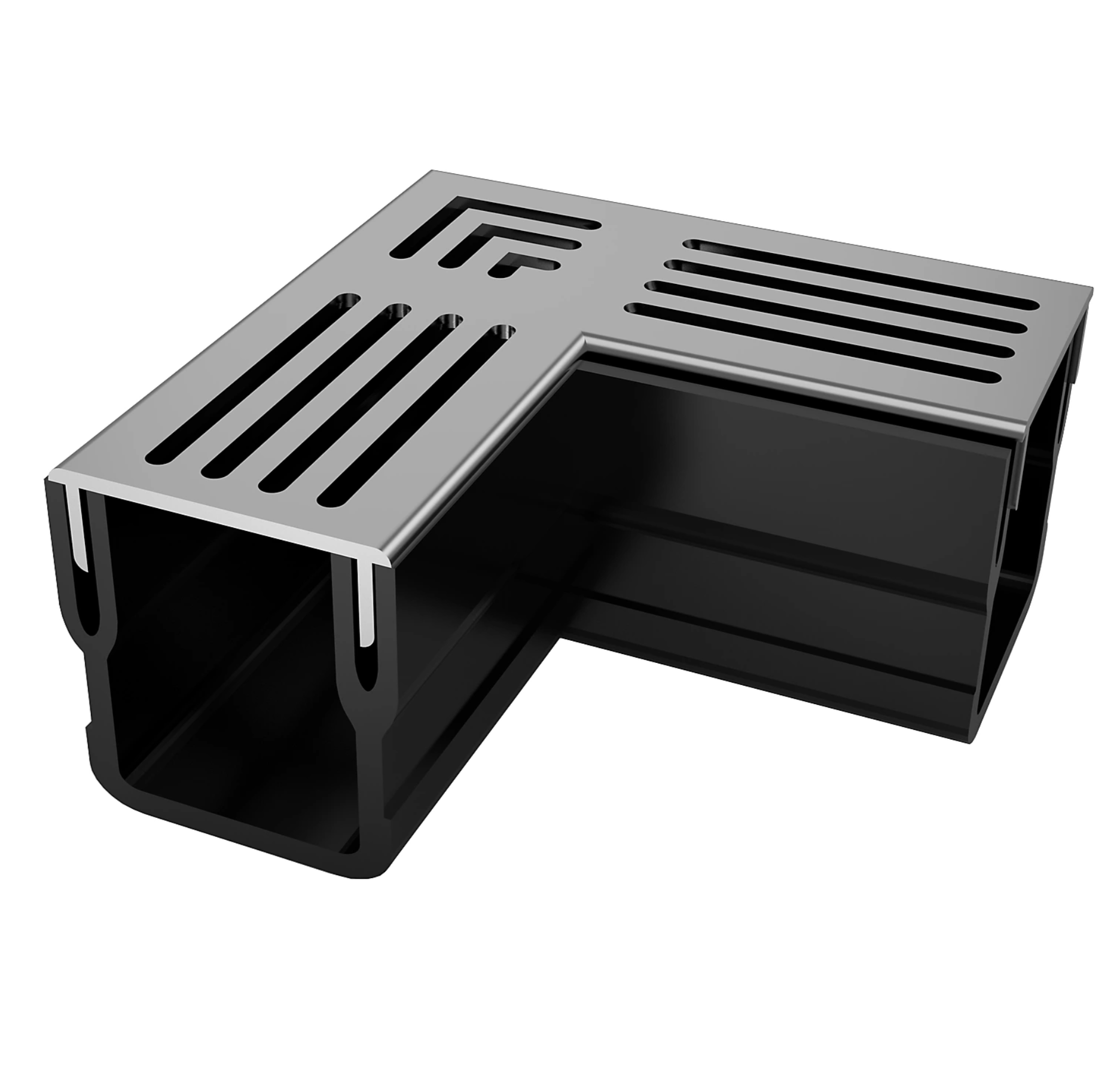

Fitted with a lightweight anodised aluminium grating, available in either silver or black, the corner unit combines strength with a clean, modern finish to complement any project.
At 65mm wide and 60mm deep, this corner piece is purpose-made for the low profile channel and is simple to install using an Alusthetic bottom connector and PVC solvent weld for a reliable, long-lasting seal.
Like the rest of the Alusthetic range, the corner unit is UKCA & CE marked and fully certified to Load Class A15 (BS EN 1433:2002), withstanding up to 15kN in soft ground and around 25kN in concrete. This makes it a dependable choice for patios, pathways, thresholds, and other non-trafficked areas.
Features & Benefits:
• Enables neat 90° corner connections in low profile drainage systems
• Slim, discreet design for a seamless finish
• Choice of anodised aluminium grating: silver or black
• Manufactured from tough extruded PVC
• Easy to fit with bottom connectors and solvent weld
• Certified to Load Class A15 (BS EN 1433:2002)
• Withstands 15kN (soft ground) and 25kN (concrete)
• UKCA & CE marked for peace of mind
Product Specifications:
• Material: PVC channel with anodised aluminium grating
• Size: 65mm (W) x 60mm (D)
• Load Rating: A15 – 15kN (soft ground), 25kN (concrete)
• Certification: UKCA & CE marked
