Description

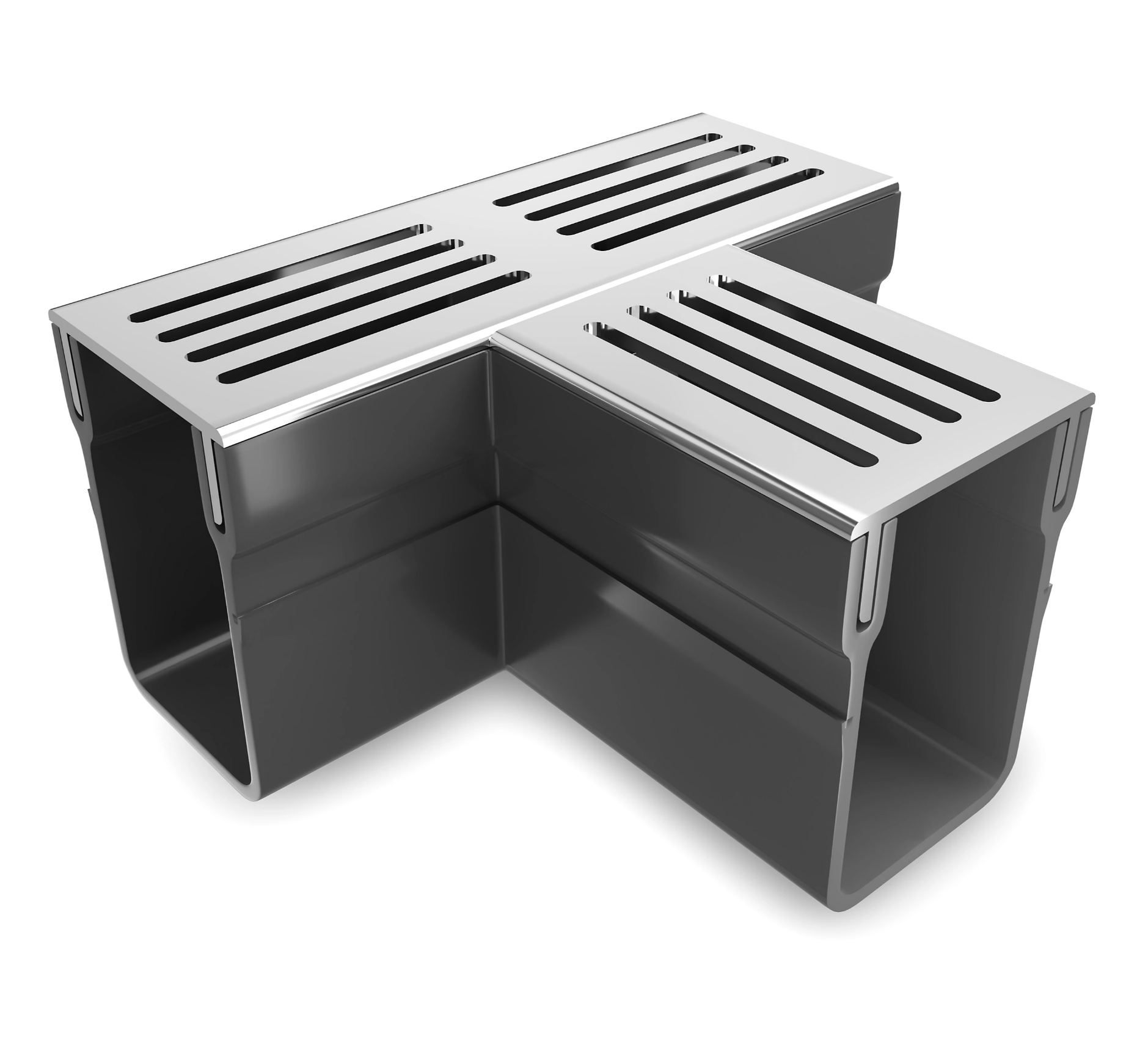

The Alusthetic Low Profile Threshold Drain Tee Piece is a practical addition to the Low Profile Alusthetic Threshold Drain and Grate system, allowing you to branch your drainage channels into a T-junction for greater flexibility and water management.
Made from durable extruded PVC, this component is designed to fit perfectly with the low profile channel system, measuring 65mm wide and 60mm deep. It features a sleek anodised aluminium grating, available in silver or black, ensuring both strength and a smart, modern appearance.
Simple to install using an Alusthetic bottom connector and PVC solvent weld, this tee piece offers a secure, watertight connection that extends the design options of your drainage system.
Fully UKCA & CE marked and certified to Load Class A15 (BS EN 1433:2002), it can withstand up to 15kN in soft ground and around 25kN in concrete. This makes it an excellent choice for patios, thresholds, pathways, and other non-trafficked areas where discreet but reliable drainage is required.
Features & Benefits:
• Expands design scope with a T-junction connection
• Slim, discreet low profile design for a seamless finish

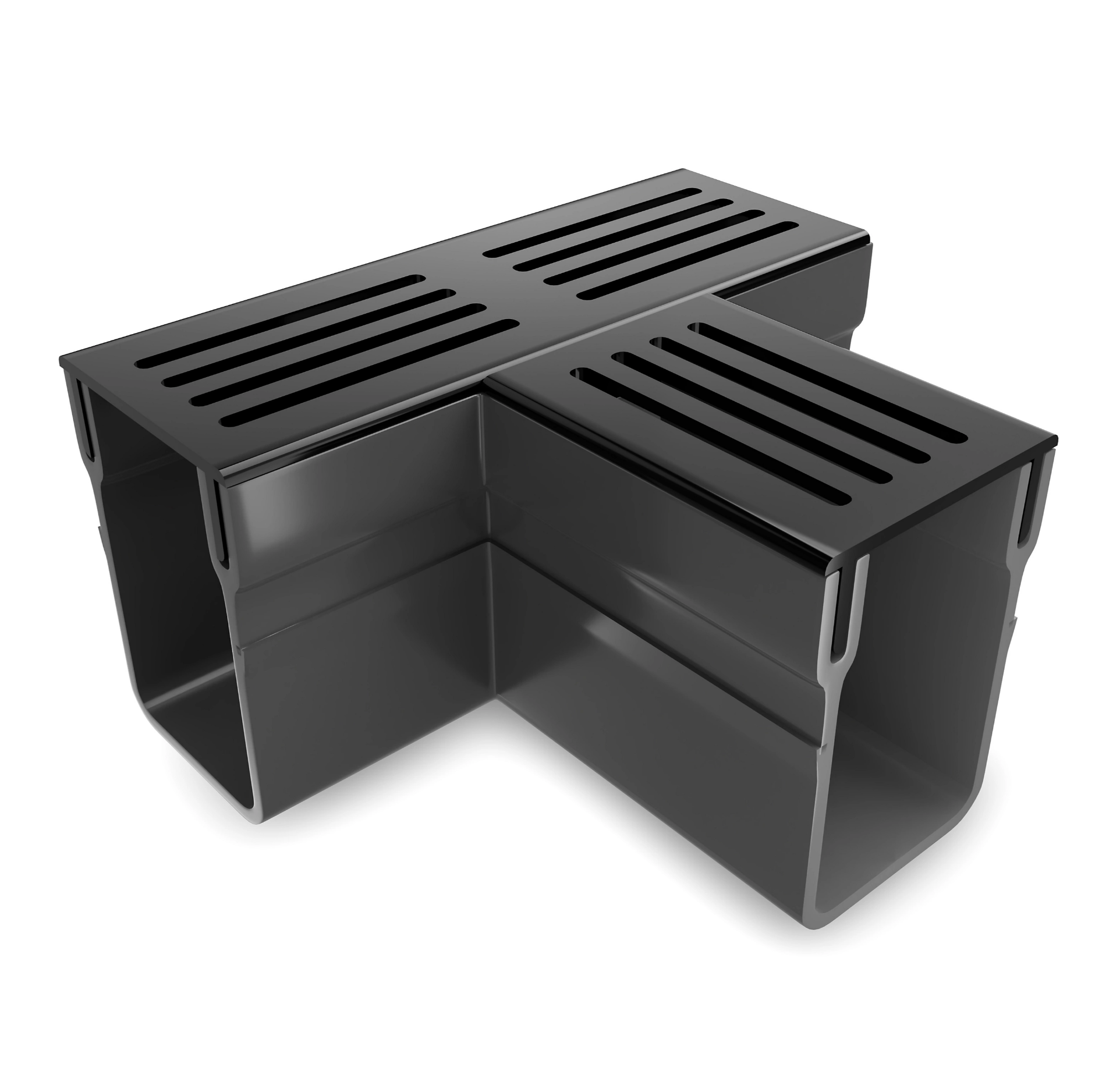

• Choice of anodised aluminium grating: silver or black
• Manufactured from robust extruded PVC
• Quick installation with bottom connectors and solvent weld
• Certified to Load Class A15 (BS EN 1433:2002)
• Withstands 15kN (soft ground) and 25kN (concrete)
• Fully UKCA & CE marked for compliance and reliability
Product Specifications:
• Material: PVC channel with anodised aluminium grating
• Size: 65mm (W) x 60mm (D)
• Load Rating: A15 – 15kN (soft ground), 25kN (concrete)
• Certification: UKCA & CE marked
