Description

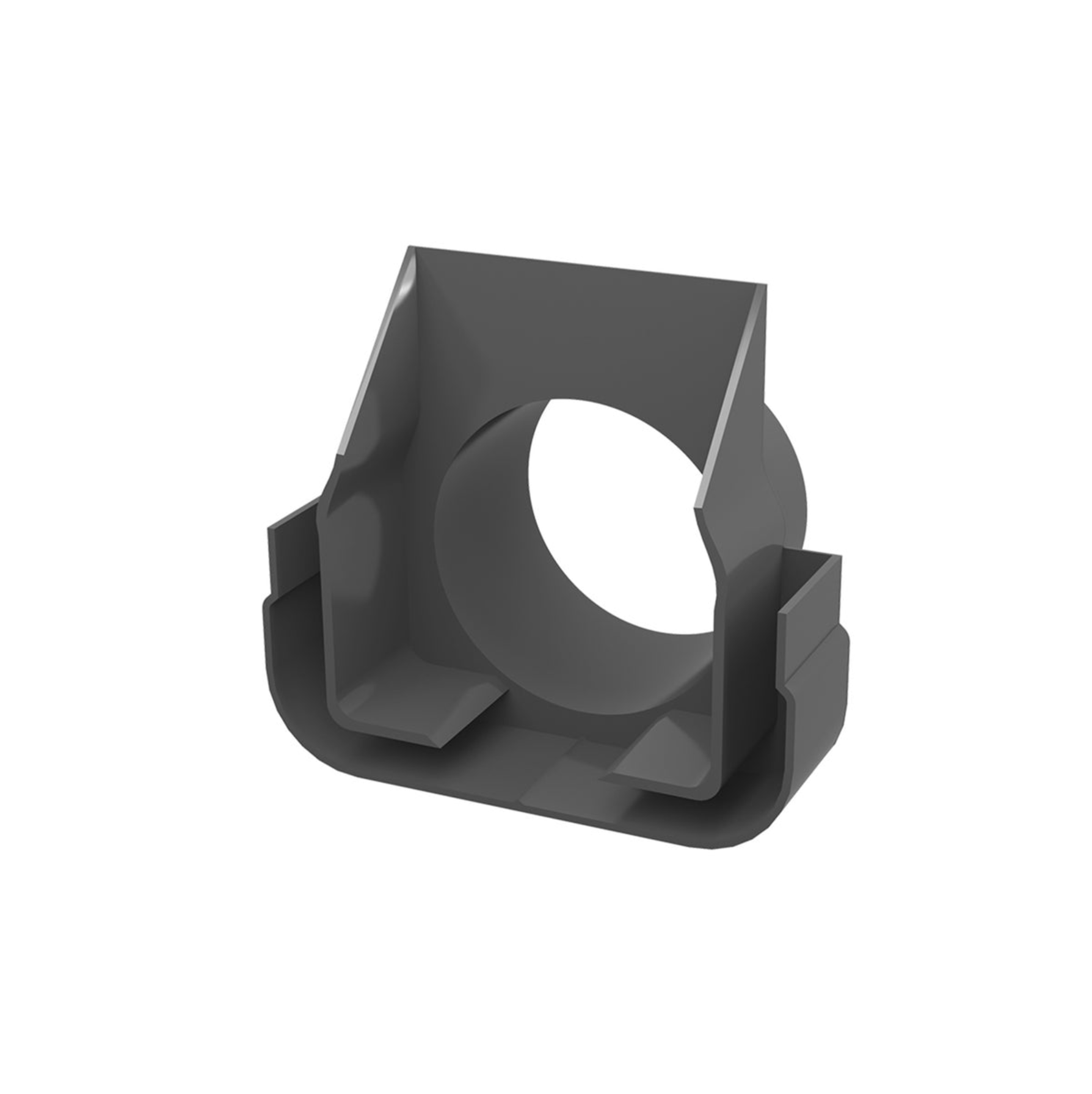

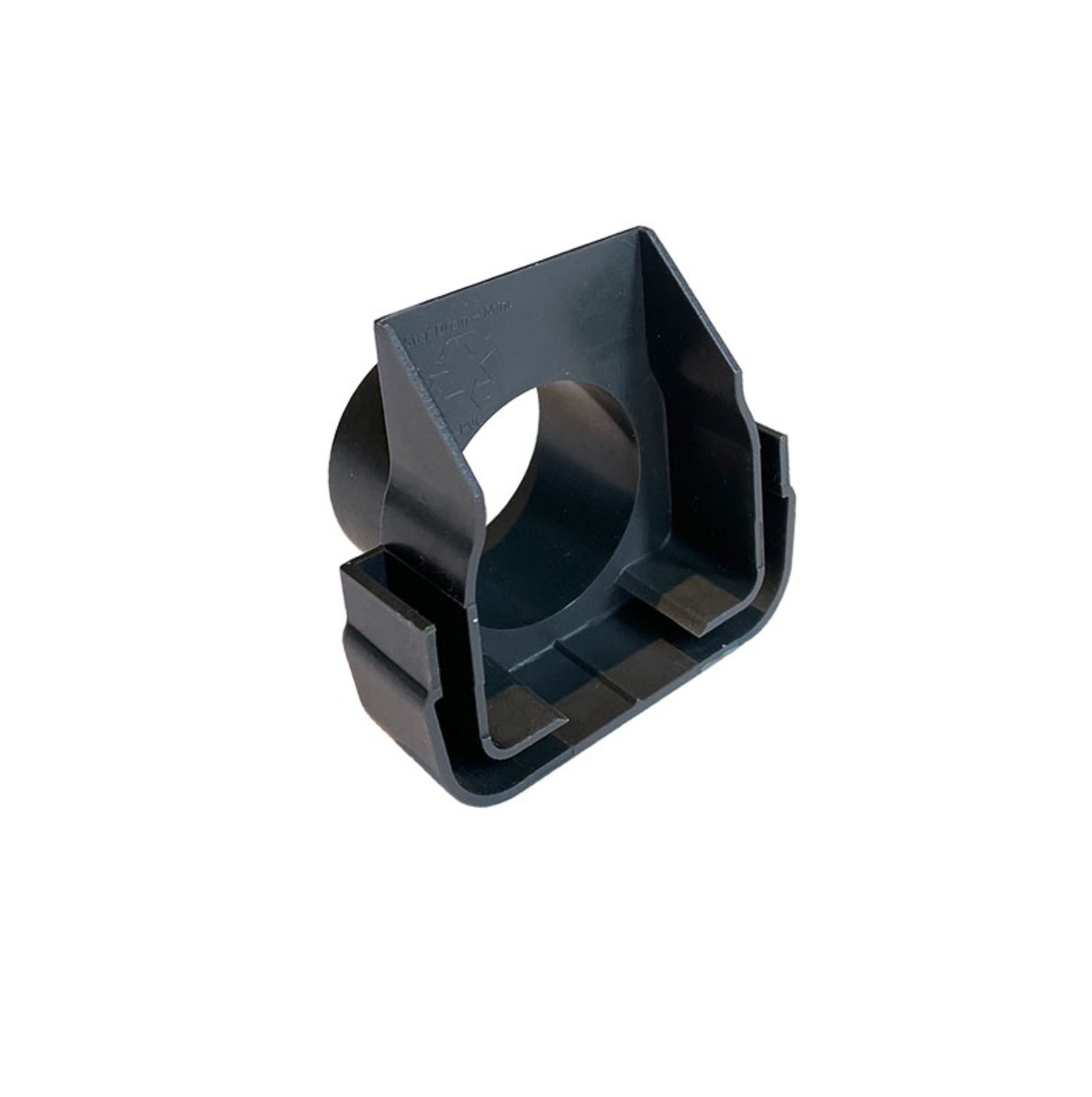

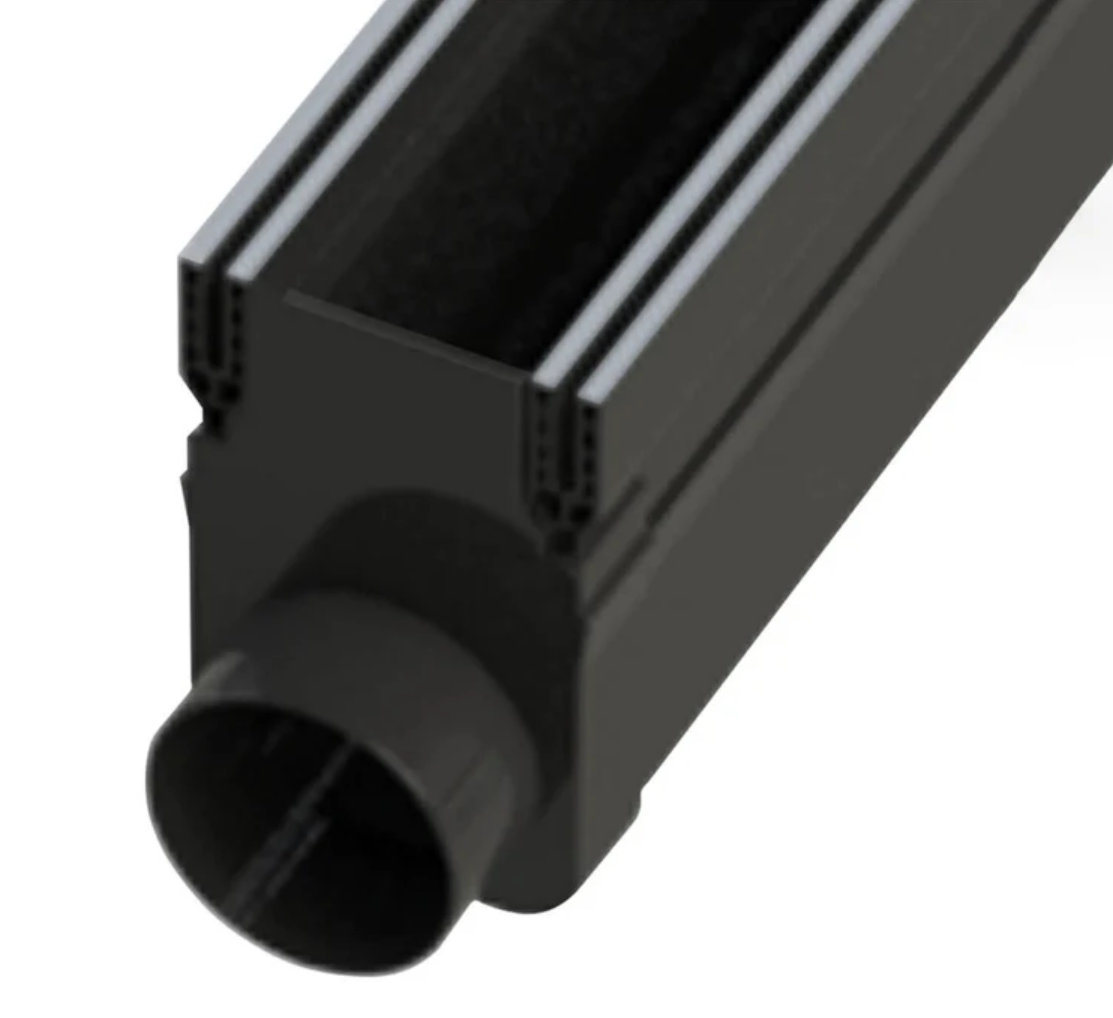

The Alusthetic Low Profile End Cap with Outlet is designed to seal the end of a Low Profile Alusthetic Threshold Drain channel while allowing water to be safely discharged through an integrated outlet. It provides a neat, secure termination to your drainage system while ensuring controlled water flow in the desired direction.
This low-profile end cap features a 50mm diameter outlet, making it easy to connect your channel system to pipework or couplings. Manufactured from durable extruded PVC, it combines strength with a lightweight design, ensuring quick and straightforward installation.
Like the rest of the Alusthetic system, it is fully UKCA and CE marked and certified to Load Class A15 (BS EN 1433:2002). This means it can withstand up to 15kN in soft ground and around 25kN in concrete, making it ideal for domestic applications such as patios, thresholds, and pedestrian walkways.
For a watertight finish, simply connect using a PVC solvent weld.
Features & Benefits:
• Provides a secure end seal for Low Profile Threshold Drain channels
• Integrated 50mm outlet for directing water into pipes or couplings
• Slim, low-profile design for a discreet finish
• Strong yet lightweight PVC construction
• Quick and simple installation with PVC solvent weld
• Ideal for patios, thresholds, walkways, and garden areas
• Certified to Load Class A15 – 15kN (soft ground), 25kN (concrete)
• UKCA & CE marked for compliance and quality assurance
Product Specifications:
• Material: PVC
• Compatible Channel Size: 65mm (W) x 60mm (D) x 1000mm (L)
• Outlet Size: 50mm diameter
• Load rating: A15 – 15kN (soft ground), 25kN (concrete)
• Certification: UKCA & CE marked
