Description

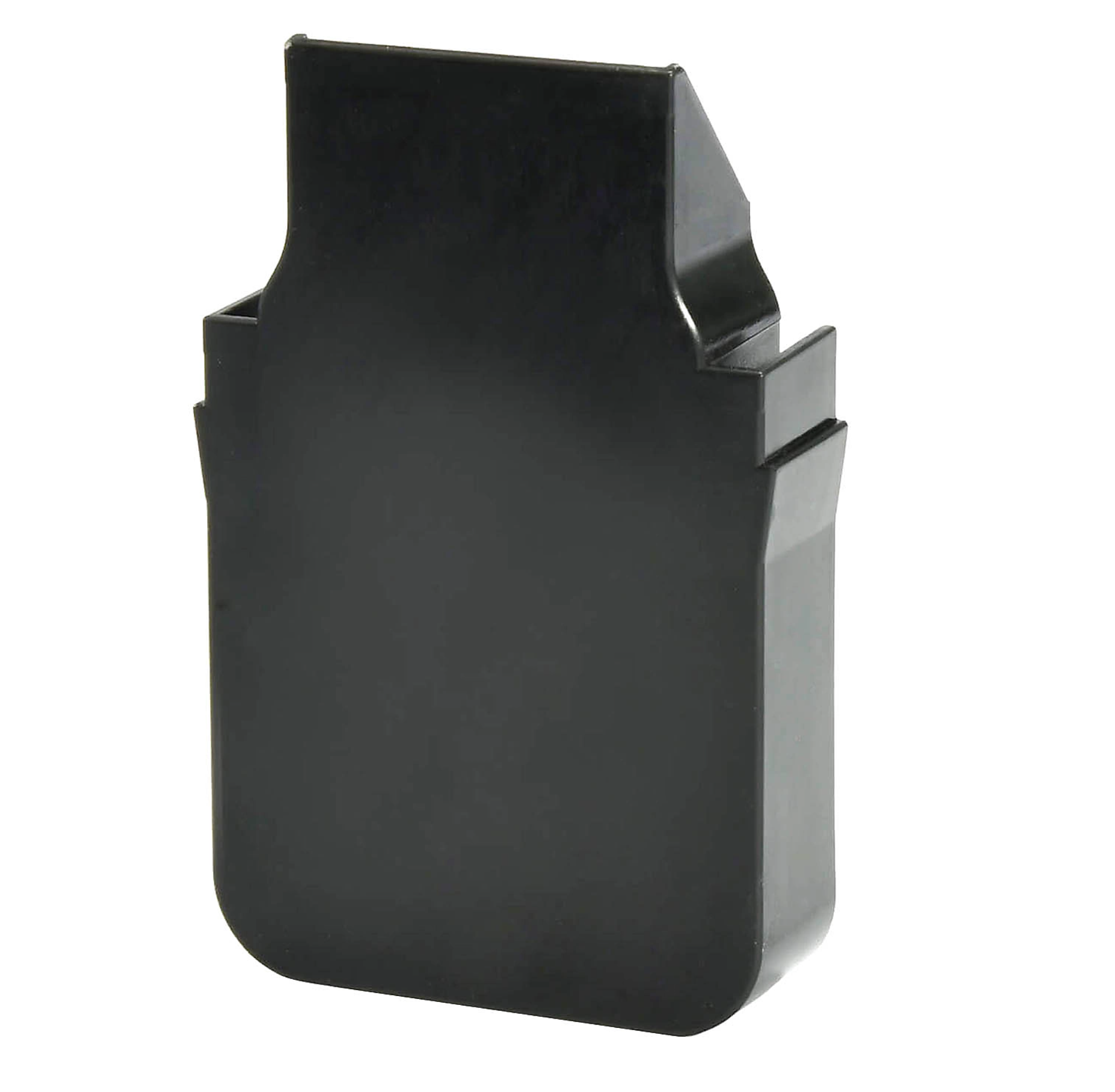

The Alusthetic Threshold Drain End Cap is designed to close off the ends of your Alusthetic drainage system, acting as a stopper to block waterflow in one direction and ensure efficient drainage where you need it.
Made from durable extruded PVC, the end cap is sized to fit perfectly with the Alusthetic Threshold Drain and Grate system (65mm width x 100mm depth). It sits flush with the channel to maintain a neat, professional finish and reliable performance.
Ideal for domestic applications such as patios, pathways, and thresholds, the Alusthetic end cap is fully UKCA and CE marked and certified to Load Class A15 (BS EN 1433:2002). This means it can withstand loads of up to 15kN on soft ground and 25kN when installed in concrete.
For a secure and watertight connection, simply fix using a PVC solvent weld.
Features & Benefits:
• Closes off channel ends for efficient waterflow control
• Strong PVC construction for long-lasting use
• Sits flush with the drain for a neat finish
• Load Class A15 certified (suitable for domestic applications)
• UKCA and CE marked for compliance and peace of mind
• Quick and easy installation with PVC solvent weld
Product Specifications:
• Material: PVC
• Dimensions: 65mm (W) x 100mm (D)
• Load rating: A15 – 15kN (soft ground), 25kN (concrete)
• Certification: UKCA & CE marked
