Description

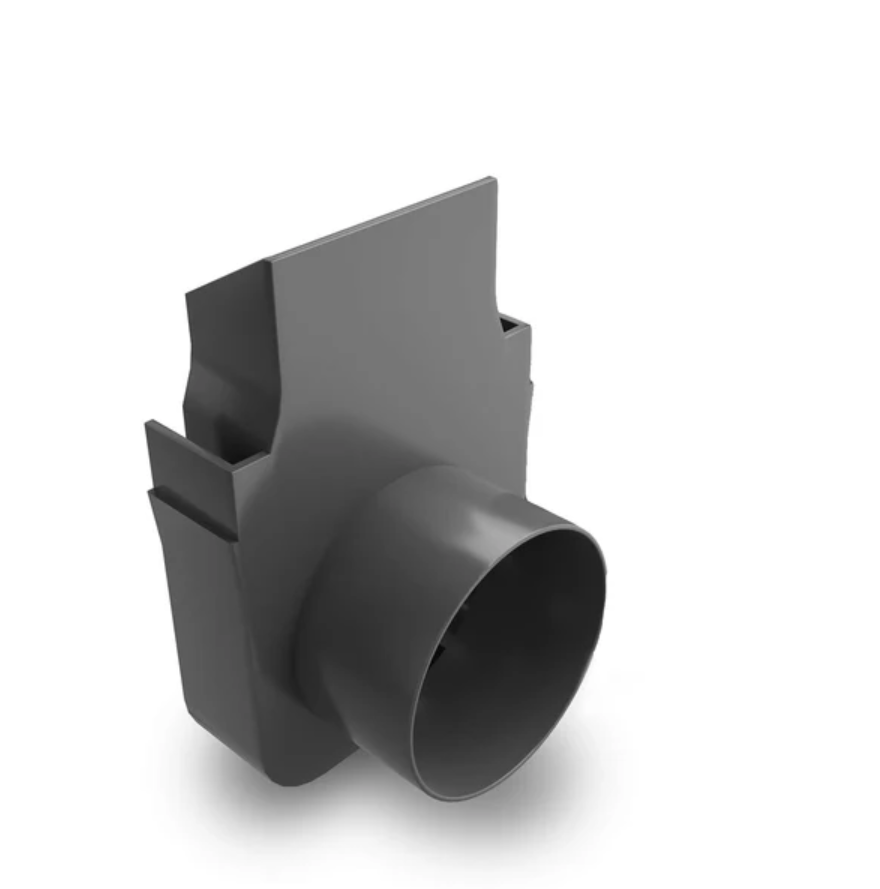

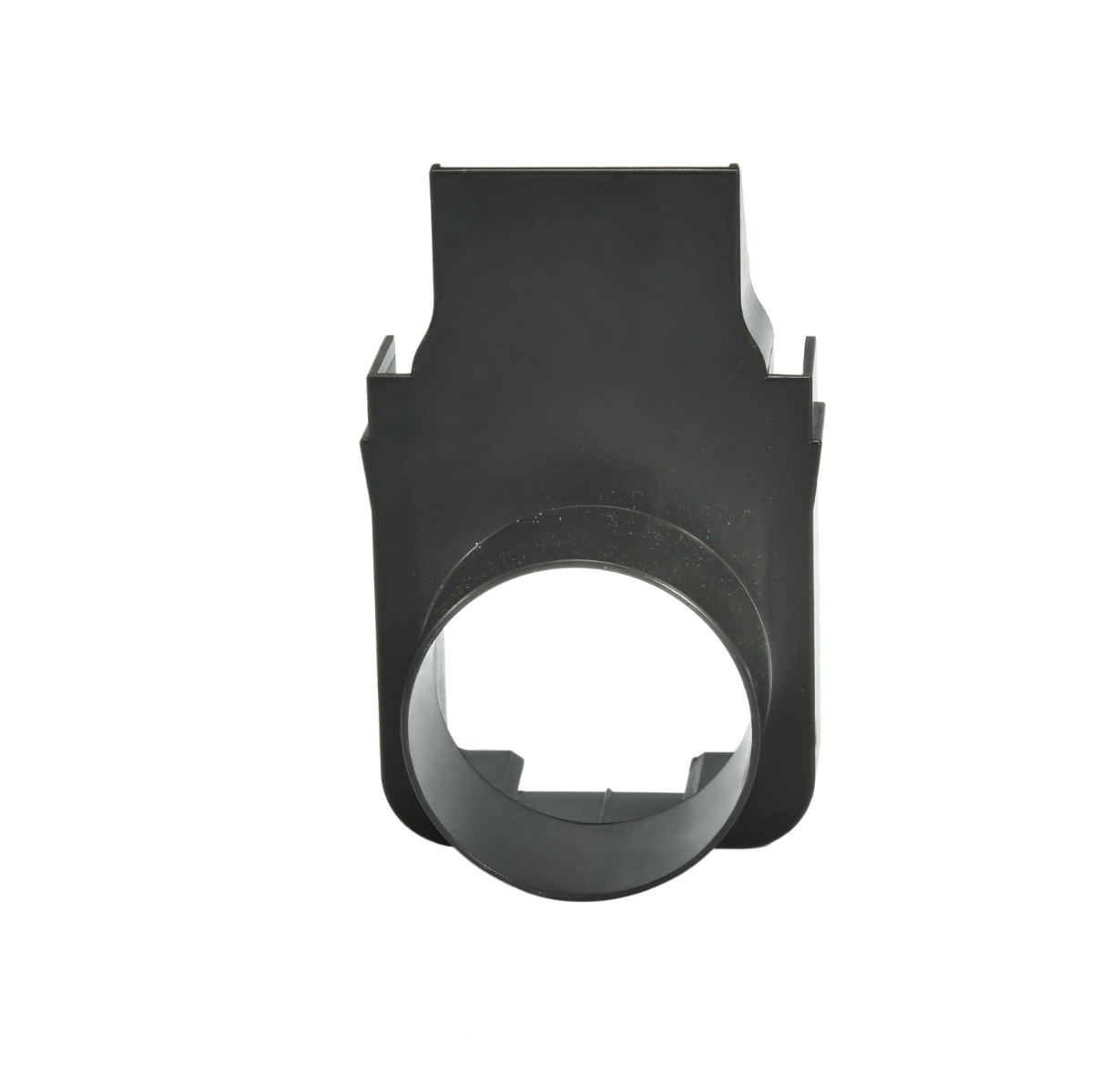

The Alusthetic Threshold Drain End Cap with Outlet is designed to connect channel drains directly to couplings or pipes, allowing controlled water flow to exit from the end of the channel. This ensures efficient drainage while maintaining a neat, flush finish.
Manufactured from durable extruded PVC, the end cap is engineered to fit the Alusthetic Threshold Drain and Grate system (65mm width x 100mm depth) and comes with a 50mm diameter outlet for pipe connections.
Ideal for domestic applications such as patios, pathways, and thresholds, the outlet end cap is fully UKCA and CE marked and certified to Load Class A15 (BS EN 1433:2002).
It withstands up to 15kN on soft ground and 25kN when installed in concrete, making it a strong and reliable addition to your drainage layout. For a watertight seal, simply connect with a PVC solvent weld.
Features & Benefits:
• Connects channels directly to couplings or pipes
• Provides controlled water flow from channel ends
• Strong PVC construction for durability
• 50mm diameter outlet for secure pipe connection
• Load Class A15 certified – ideal for patios, thresholds, and walkways
• UKCA and CE marked for compliance and reliability
• Easy installation with PVC solvent weld
Product Specifications:
• Material: PVC
• Dimensions: 65mm (W) x 100mm (D)
• Outlet size: 50mm diameter
• Load rating: A15 – 15kN (soft ground), 25kN (concrete)
• Certification: UKCA & CE marked
