Description

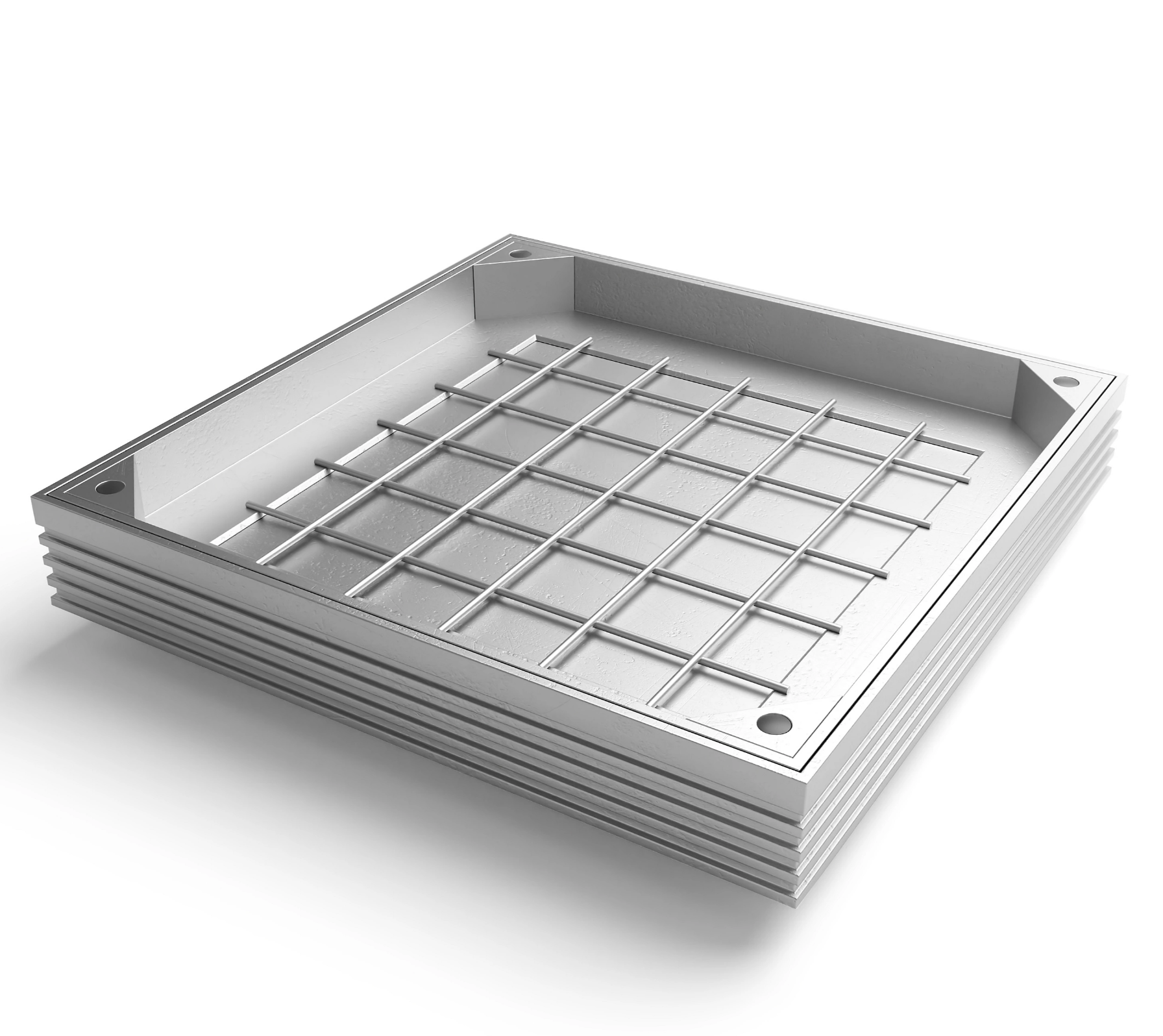

The Alusthetic DS-Line range offers premium-quality, double-sealed aluminium manhole covers designed for durability, performance, and a discreet finish. Manufactured from high-grade extruded aluminium and tested to BS:EN124 standards, these covers combine strength with a sleek, modern appearance – making them suitable for both domestic and public exterior applications.

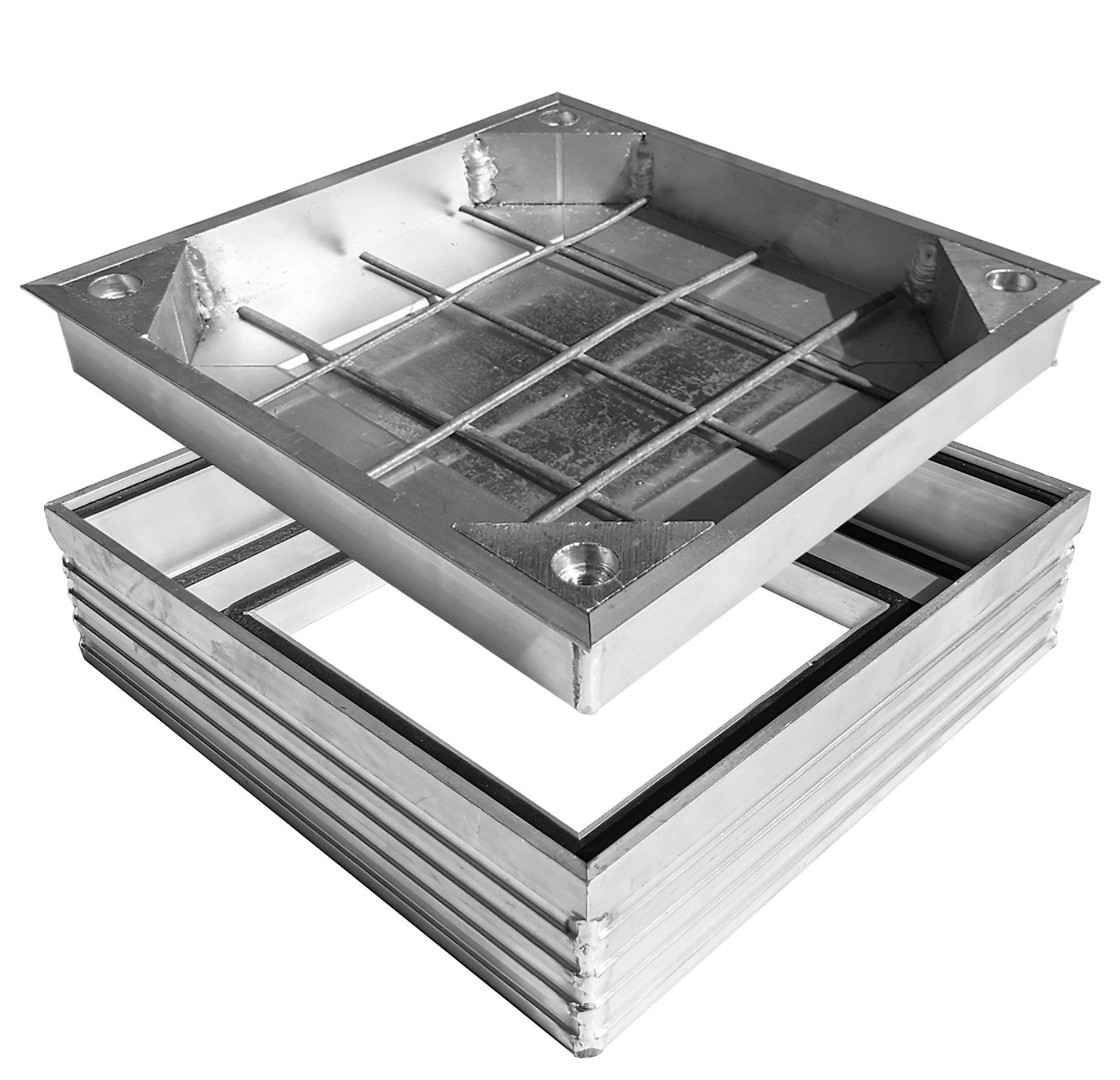

Engineered with a reinforced mesh tray, they maintain the rigidity of the infill material while withstanding harsh weather conditions. The double-seal system – a neoprene base seal and a built-in T-rubber side seal – prevents odours, dirt, and water ingress, ensuring a clean and effective solution for exterior drainage access points.

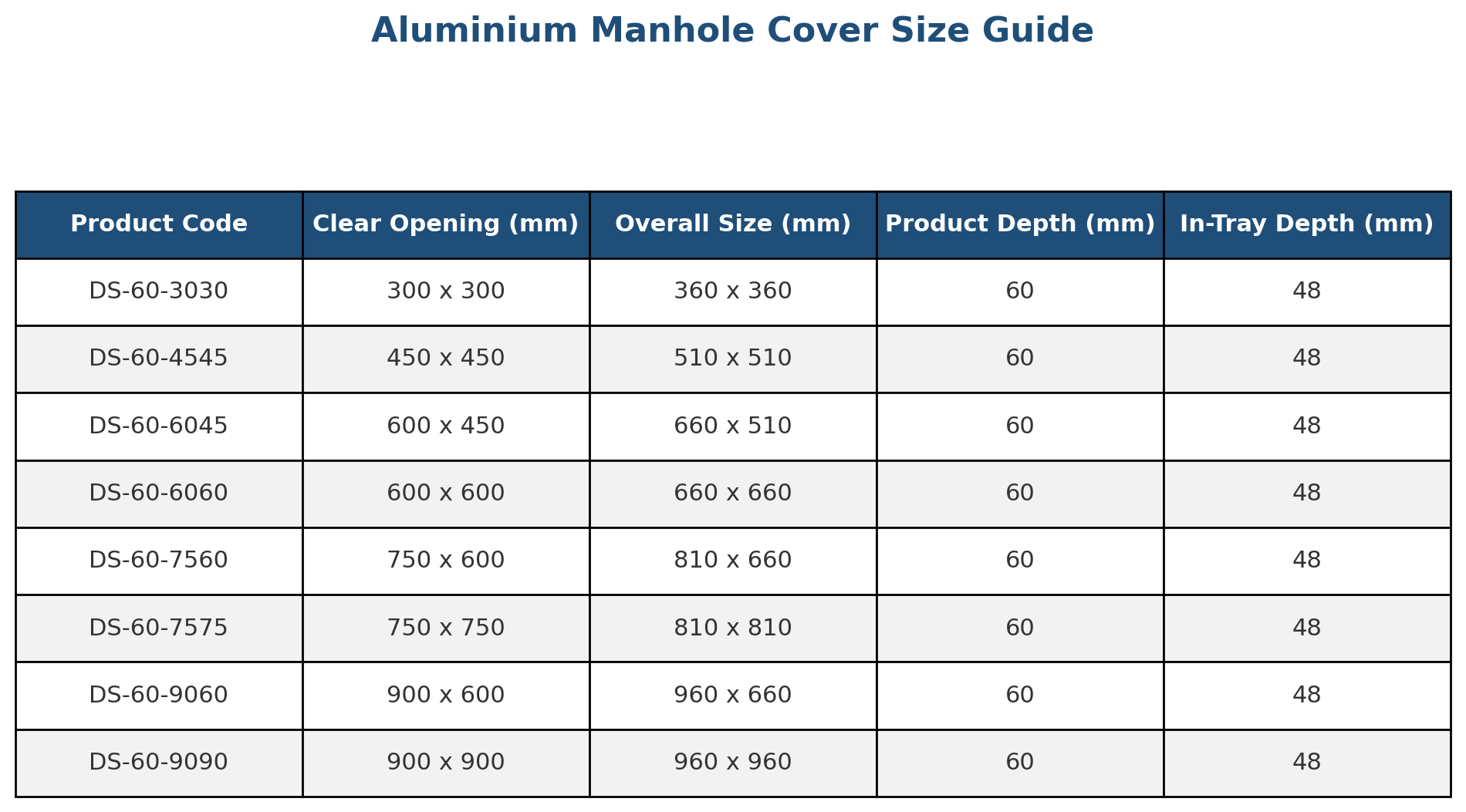

| Product Code | Clear Opening (mm) | Overall Size (mm) | Product Depth (mm) | In-Tray Depth (mm) |
| DS-60-3030 | 300 x 300 | 360 x 360 | 60 | 48 |
| DS-60-4545 | 450 x 450 | 510 x 510 | 60 | 48 |
| DS-60-6045 | 600 x 450 | 660 x 510 | 60 | 48 |
| DS-60-6060 | 600 x 600 | 660 x 660 | 60 | 48 |
| DS-60-7560 | 750 x 600 | 810 x 660 | 60 | 48 |
| DS-60-7575 | 750 x 750 | 810 x 810 | 60 | 48 |
| DS-60-9060 | 900 x 600 | 960 x 660 | 60 | 48 |
| DS-60-9090 | 900 x 900 | 960 x 960 | 60 | 48 |
Key Features & Benefits
• Double-sealed system – prevents odours, water ingress, and dirt build-up
• High-grade extruded aluminium frame – strong, lightweight, and corrosion-resistant
• Reinforced mesh tray – maintains rigidity of infill material
• Tested to BS:EN124 standard – reliable performance in domestic and public use
• Discrete, aesthetic finish – blends seamlessly with surroundings
• Recommended for exterior applications
Product Specifications
• Material: High-grade extruded aluminium
• Seal Type: Double-sealed (base neoprene + T-rubber side seal)
• Certification: BS:EN124 compliant

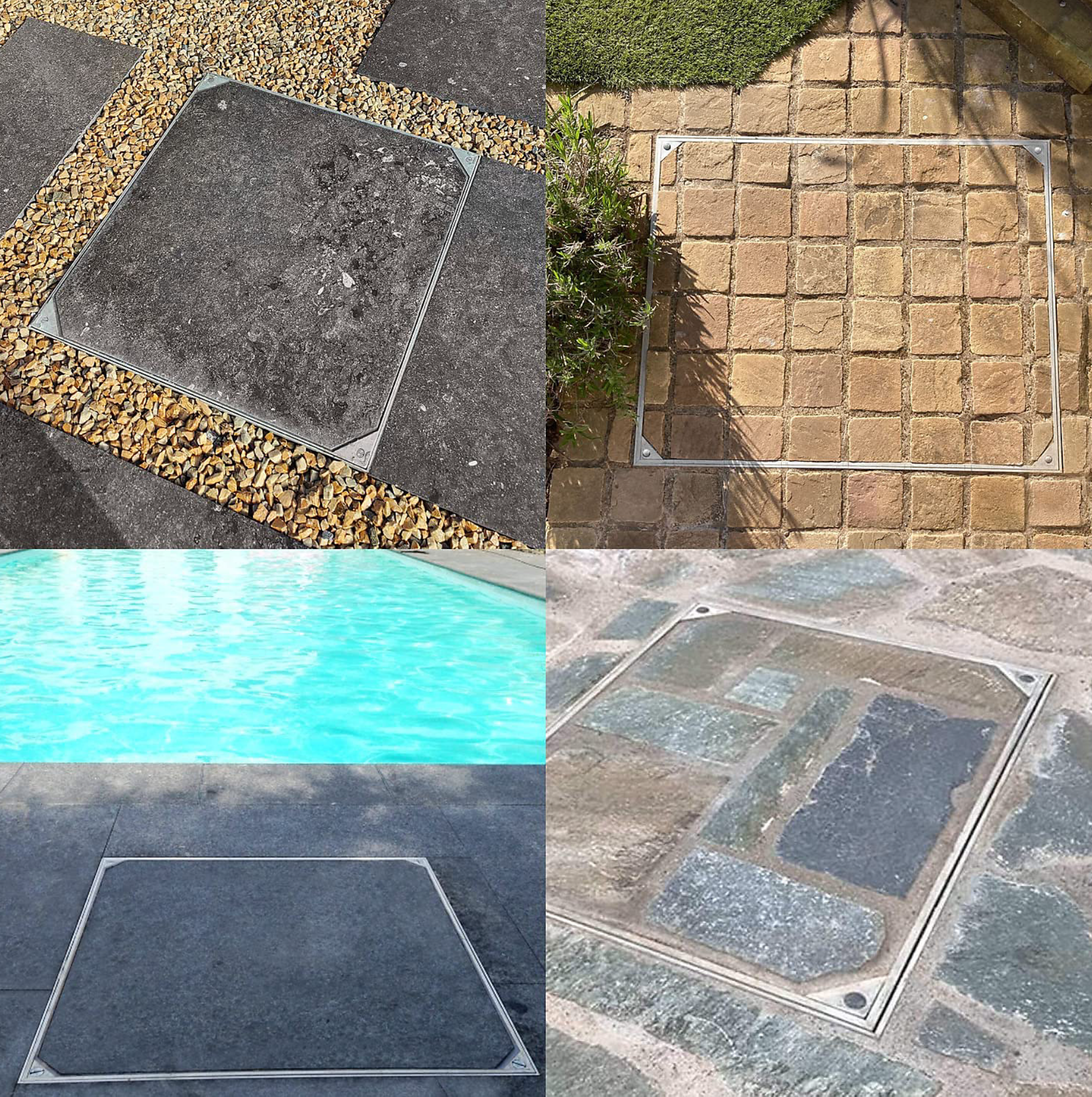

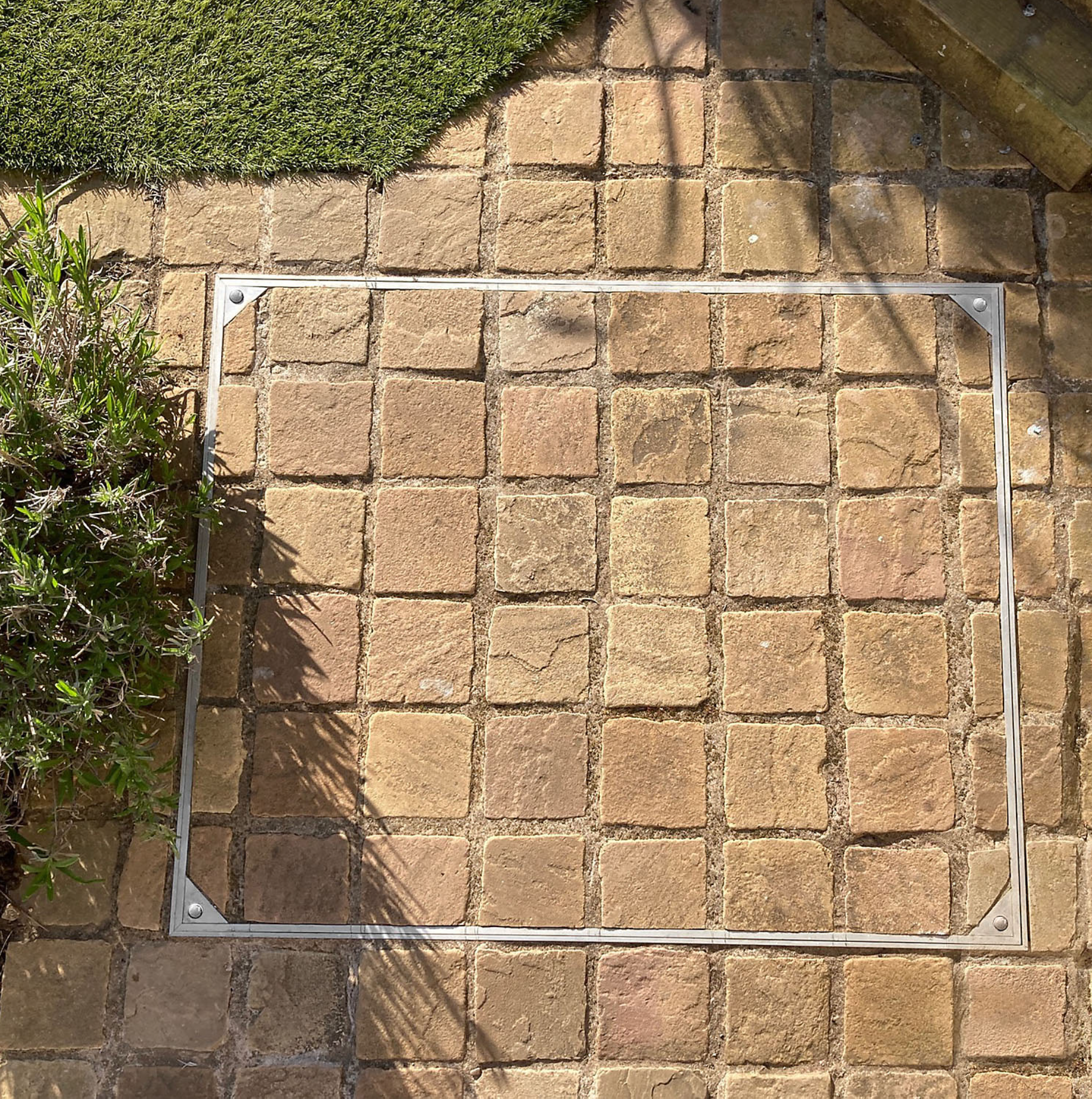

• Application: Exterior use – patios, driveways, public pathways, landscaping
• Finish: Discreet recessed design for infill
• Sizes: Available in a full range of internal and external dimensions (see variants)
