The Eurodec Coping Stone Fixing Dowel provides a secure mechanical fixing solution for Eurodec concrete coping stones, helping to reduce the risk of movement or detachment caused by wind uplift, imposed loads or deterioration of the mortar bed over time.

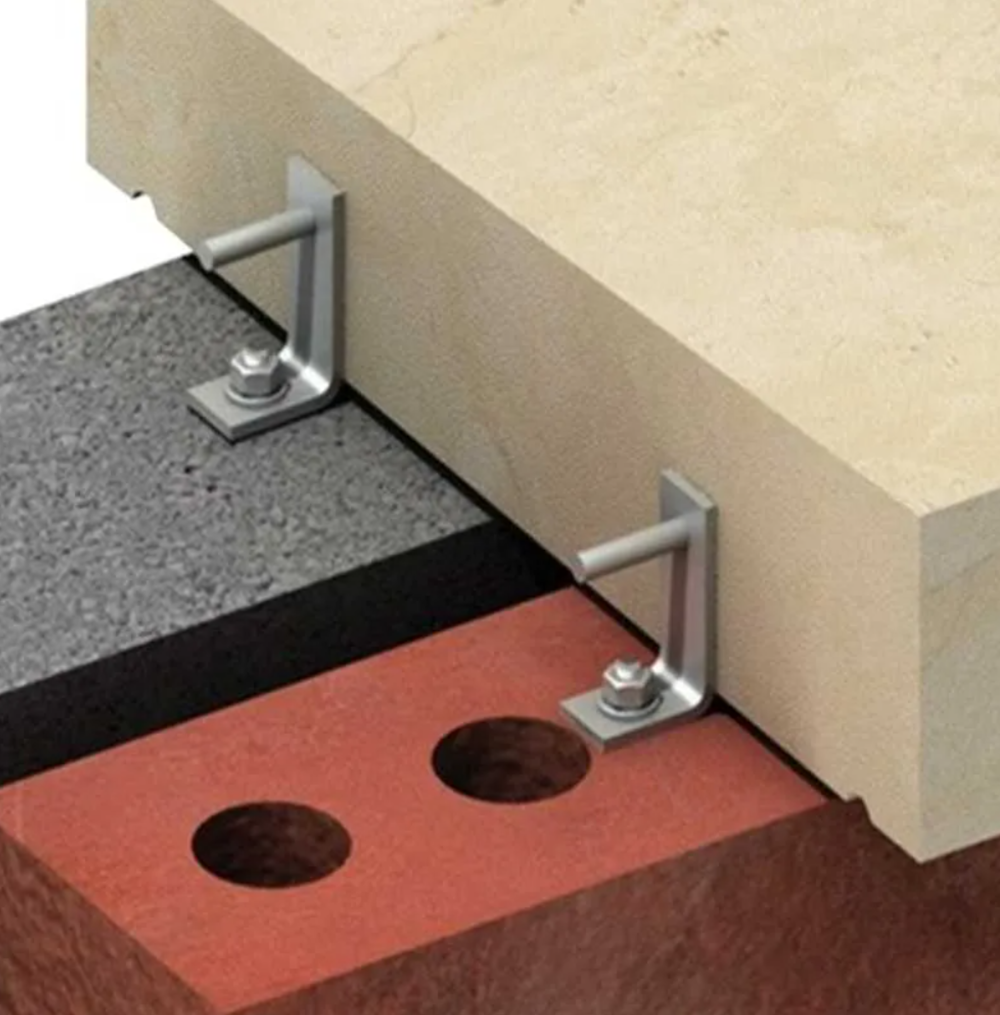

Manufactured from stainless steel, the fixing system consists of an L-shaped fixing bracket and dowel, which work together to provide additional security alongside the traditional mortar installation.
The bracket is fixed to the wall within the joint between adjoining coping stones. The coping is then drilled to correspond with the position of the dowel before being installed and the joint pointed with mortar.
Key Features
• Stainless steel construction
• Suitable for Eurodec concrete coping stones
• Includes L-shaped bracket and dowel
• Provides additional mechanical restraint alongside mortar fixing
• Helps prevent coping stones becoming loose or detached
• Designed for installation within the joint between coping stones
• Suitable for exposed locations where additional fixing security is required
• Designed in accordance with BS 8298-2:2010
Installation
The L-shaped bracket should be securely fixed to the wall within the joint between the coping stones. The corresponding coping stones are then measured and drilled to receive the dowel before being installed and the joints pointed with mortar.
For gable walls or particularly exposed applications, additional resin bonding may also be considered.
Quantity Required
2 fixing dowels are recommended per coping stone.
Please Note
• Supplied with 1 x stainless steel dowel and 1 x L-shaped bracket
• Wall fixings / screws are not included
• Suitable fixings should be selected according to the wall or substrate being fixed into
• Coping stones should always be installed in accordance with the manufacturer's installation guidance
